Automatic leveling/easy operation/convenience/precise
Feature:
⇒ 1 vertical lines, 1 horizontal line and 1 dot point
⇒ Magnetic damping compensator ensure quick self-leveling (±3º)
⇒ Automatic alarm when out of leveling range (±3º)
⇒ Rotate fine adjust mechanism
Standard equipment:
Specifications
| Accuracy | ±1 mm/5M |
| Self-leveling range | ±3º |
| Light source | Visible semiconductor laser diode (Class 2M, less than 1mW) |
| Line width | 1.5mm/5M |
| Fine angle adjustment | ±1º |
| Rotating | Auto turning 360º |
| Damping Type | Magnetic / Pendulum |
| Working range | 5-10M without detector, 15-30M with detector |
| Operating time/td> | 10 hours for full function continuous operation |
| Operation Temp | 5~50ºC |
| Storage Temp | -20~65ºC |
| Power | 3X AA alkaline batteries |
| Weight | 1,398g-INCL.Batteries |

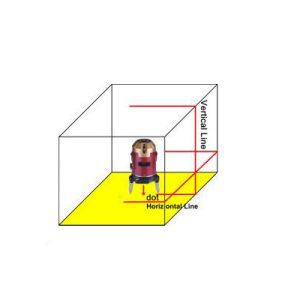

Laser Line:
Touch Panel:
H: horizontal line switch
V: vertical line switch
Outdoor: Detector mode
Application: tiling, flooring, framing, decorating, and other building and remodeling projects
